Reminder: This product does not support DVB-C channels

DVB-T2 H.265/HEVC

CPU GX6702-S5
Flash 4M Byte
TUNER Rafael R842
Front Panel
USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby,green LED Lock
Panel KEY, POWER, CH+ ,CH-,VOL+,VOL-

Rear Panel
Tuner RF input connector IEC-162-2( Female)
Tuner RF Loop through connector "IEC-162-2( Male)
"
HDMI V1.4b

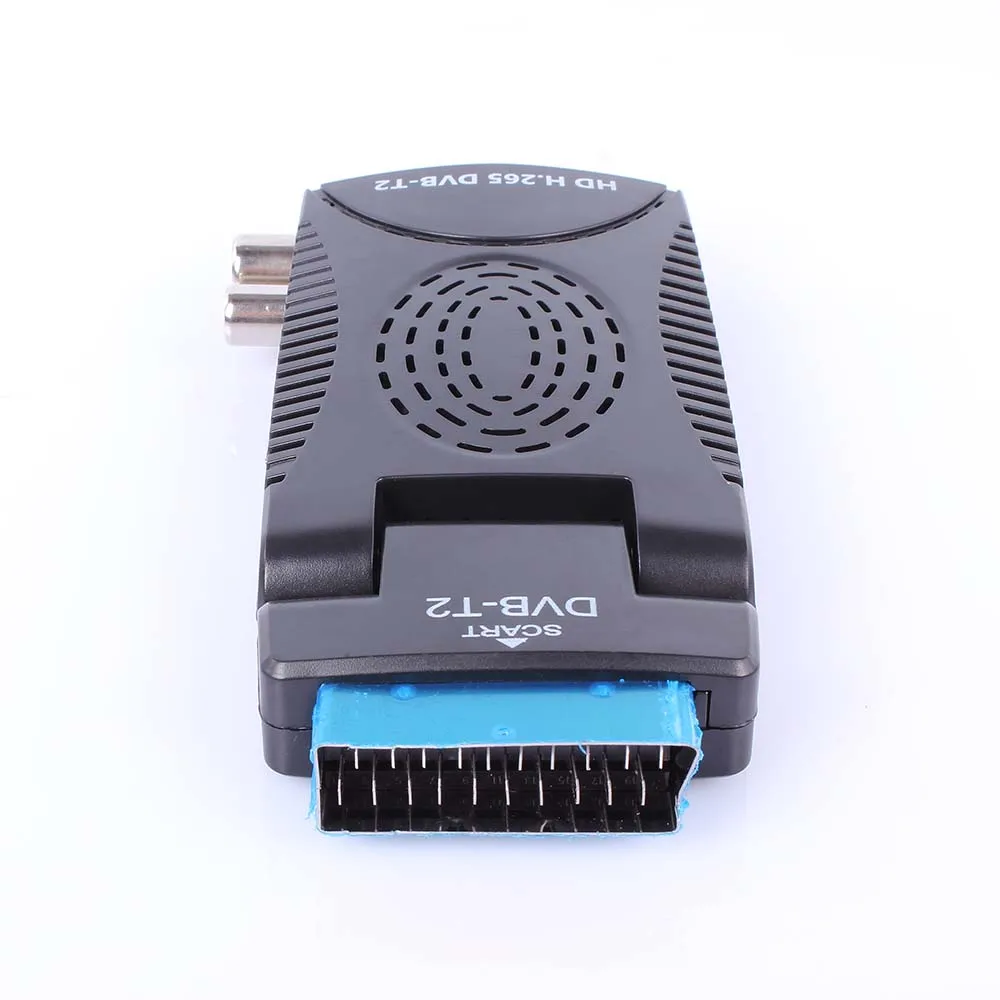

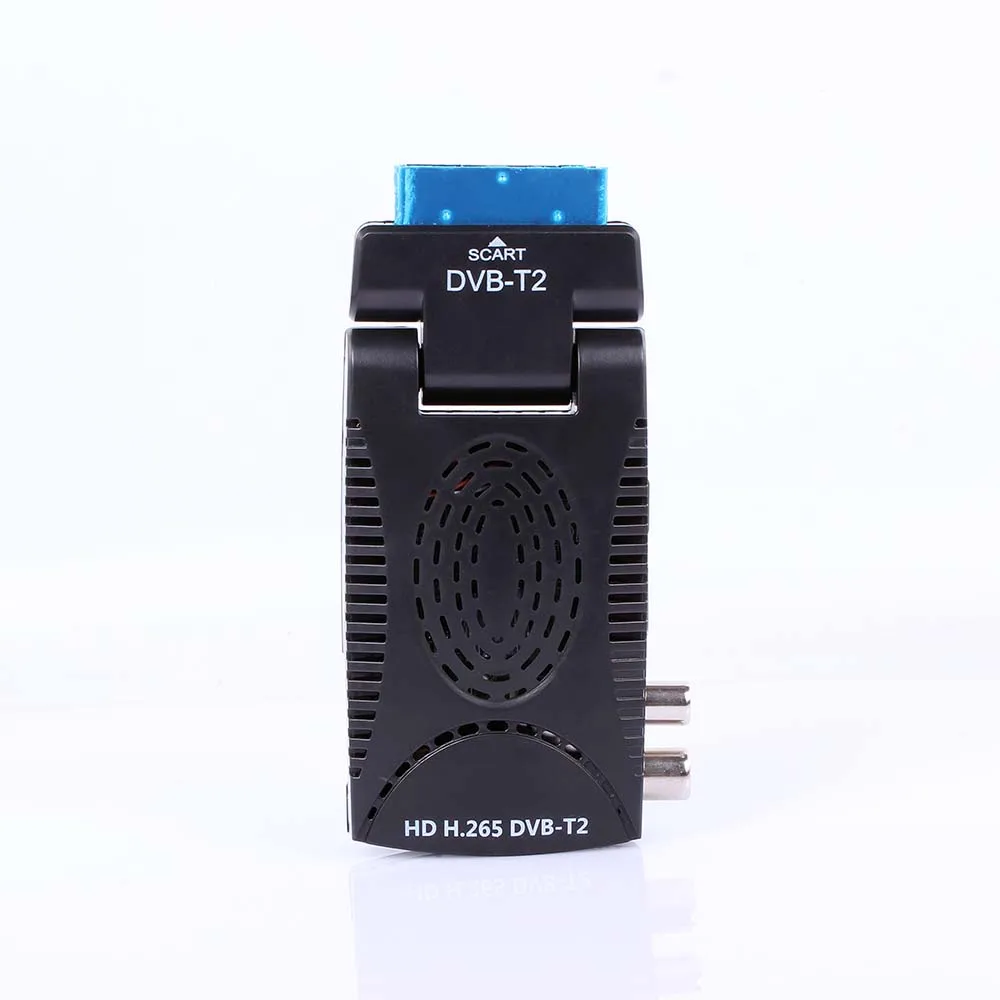

SCART Connector x1
Power AC100~240V 50Hz/60Hz

Demodulation

Terrisal Receiver Standard DVB-T2/T(EN_302755 V1.3.1/EN 300744)
Input RF Frequency 48~866MHZ
Bandwidth 6MHz,7MHz,8MHz
Constellation QPSK 16-QAM 64-QAM and 256-QAM
FEC 1/2, 3/5,2/3, 3/4,4/5,5/6
Guard Interval 1/128 1/32 1/16 19/256 1/8 19/128 1/4
FFT Mode 2K/ 8K/32K
Support Support Single and multiple PLPS
Input level -83 - -5dBm

Sortware Features

•Fully comply with DVB-T/T2 and H.264, MPEG-2/4 H.265/HEVC Standard
•The maximum speed of the traffic flow of at least 50 Mbit / sec
•Support 3D interface
"•Sleep Timer
"
"•Support teletext/subtitle/muti-language

"
•Powerful and highly effective 7-day EPG function
•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen
•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback
•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Network

Network Application "online video , Weather, RSS
USB Wi-Fi Dongle MTK7601

Video Decoder

MPEG-2/4 Video Decoder H.264 Decoder VC-1 Decoder
AVS/AVS+ Decoder
VP8 Decoder VP9 Decoder
HEVC (H.265) Decoder

Audio Decoder
Audio sampling rate conversion (SRC)
Supports digital audio decoding: − MPEG-1 (Layer I/II), MPEG-2 (Layer I/II), MP3
AAC-LC, WMAOptional, WMA 10 ProOptional,E-AC-3 (Dolby Digital Plus)Optional.
HE-AAC 5.1 multi-channel decoding

Powerful Multimedia Features

MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)
"Video Decoder
" JPEG, BMP, PNG

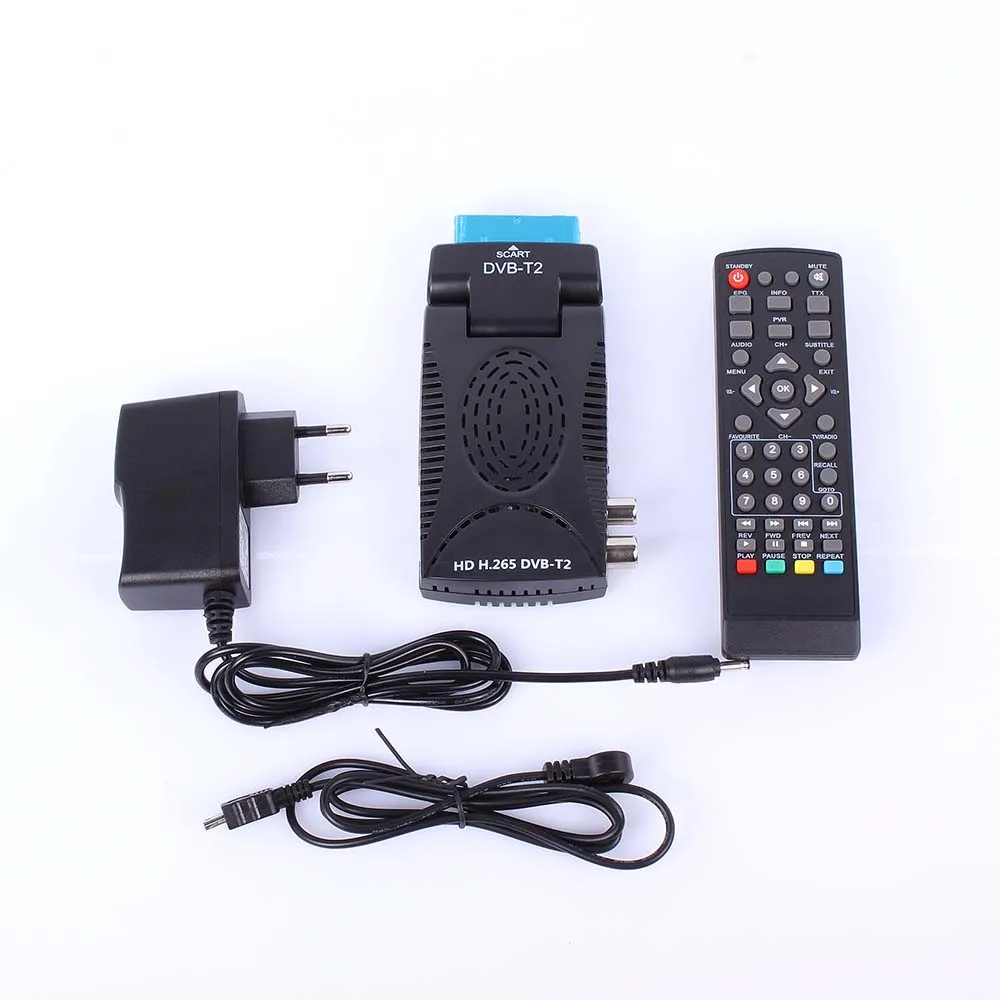

Accessories

gift box

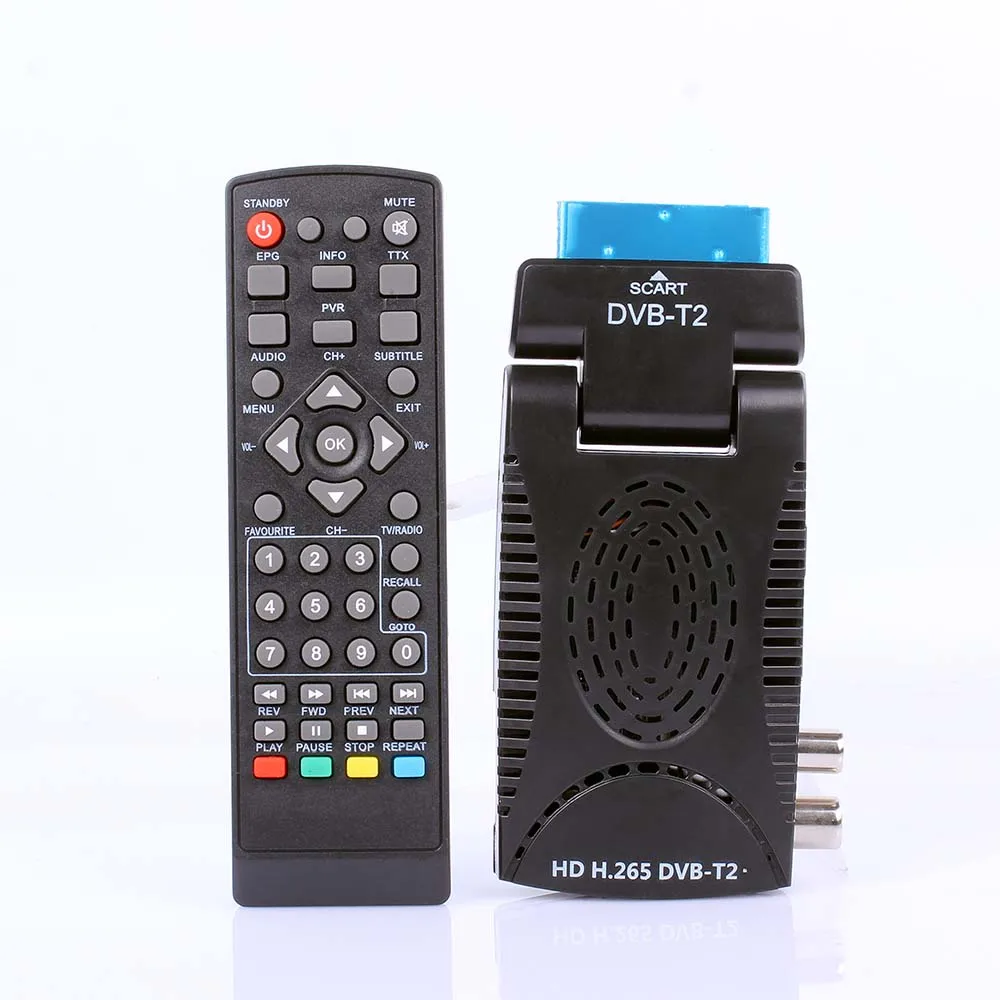

IR remote control
User Manual
